Aqua Signal Series 34 LED
LED navigation lights. The latest LED generation in an attractive and slim design. Totally maintenance-free. The series 34 is specially designed for sailing boats < 50 m / 164 ft. (Bicolor: < 20 m / < 65 ft.)
- Stock Level
- In Stock
- SKU
- P-02-3850-001
Description
The navigation lights fulfil all requirements of the "International Regulations for Preventing Collision at Sea 1972 (COLREG)", published by the international Maritime Organization (IMO) and local rules.
Electrical specification
12 - 24 V DC, +/-20%. Mulivolt, invers polarity protection included, EMC tested, with degradation control, LED(s) included, 2 x 1.5 mm², self-protective insulation, class II.
Mounting
Side-mount, pre-wired with 140 mm cable 2 x 0.30 mm2/ AWG 22, 2-hole mounting.
Optic
Innovative lens technology for wide visibility with one or twolight-emitting diodes (depending on article).
Housing
Polycarbonate, seawater resistant, UV protected, non-corrosive, non-magnetic, impact and shock resistant.
Additional
| Light Type | Bi-Colour, Port, Starboard, Stern |
|---|---|
| Brand | Aqua Signal |
| Voltage | 12v, 24v |
| Housing | Aluminum, Black, White |

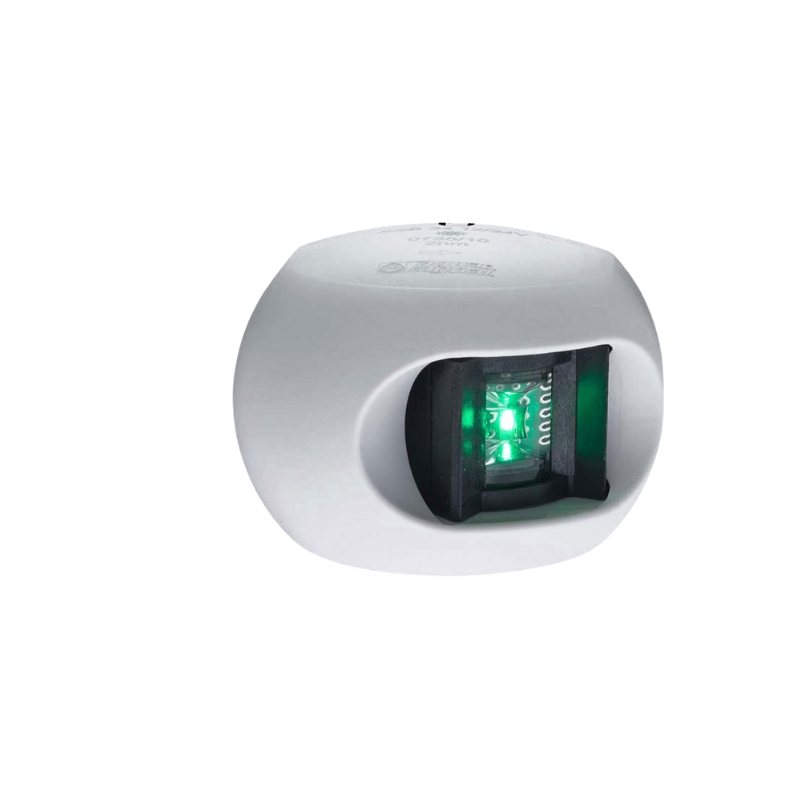

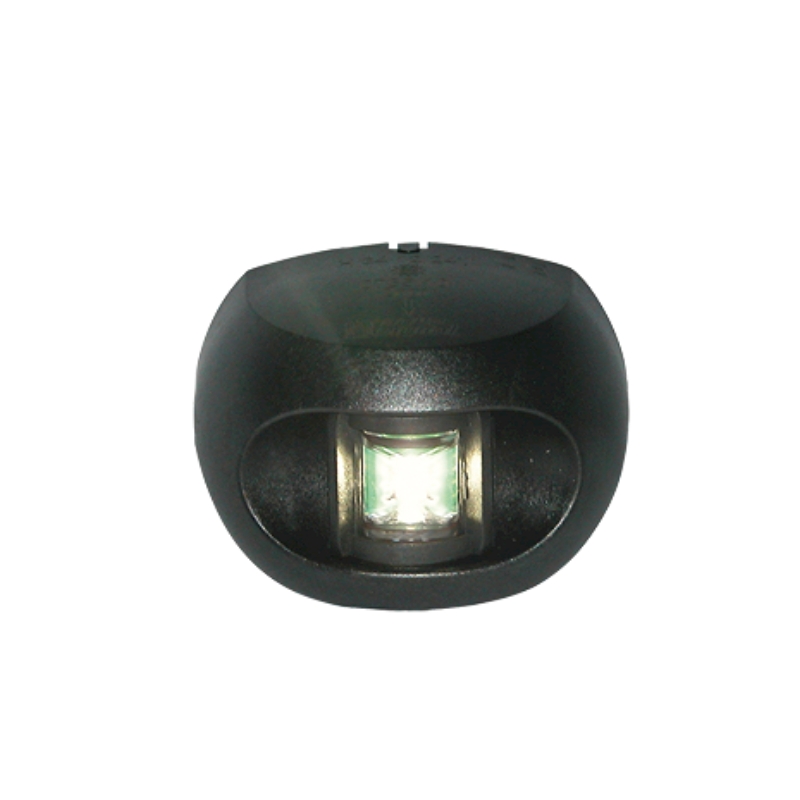

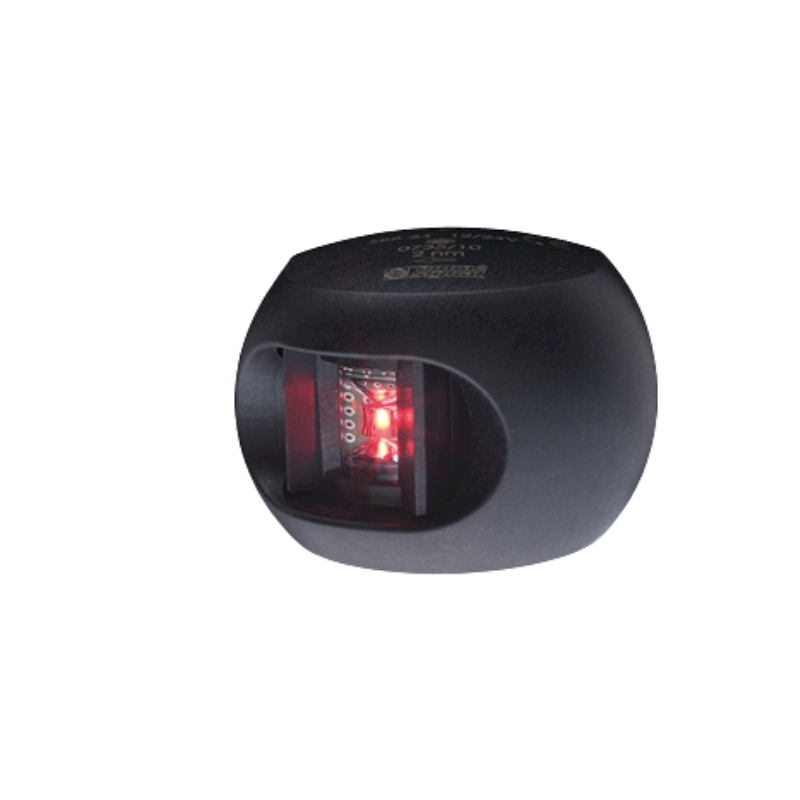

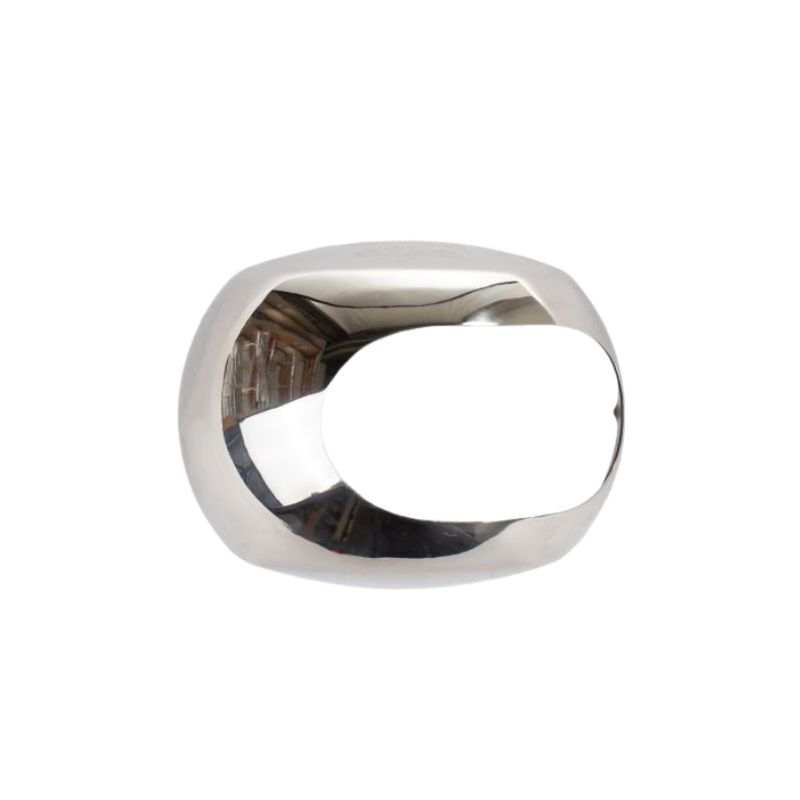

| Options | S34 LED Bicolour 12/24v - Aluminium Housing, S34 LED Bicolour 12/24v - Black Case, S34 LED Bicolour 12/24v - White Case, S34 LED Port 12/24v - Black Case, S34 LED Port 12/24v - White Case, S34 LED Starboard 12/24v - Black Case, S34 LED Starboard 12/24v - White Case, S34 LED Stern 12/24v - Black Case, S34 LED Stern 12/24v - White Case, S34 Port Stainless Steel Cover, S34 Starboard SS Cover, S34 Stern SS Cover |
| Mount | Deck Mount, Side Mount |
| Visibility | 2nm |
| Approvals | BSH, CE, EMC, GL, IMO, MED Wheel Mark |
