Index Marine SE Cable Glands
The SE1 side entry cable gland is the perfect solution when space is limited or when loops from conventional top entry glands are not appropriate. Available in various finishes, the entire SE series of glands are tested achieving the IP68 rating which ensures a perfect waterproof solution for various cable management applications.
- Stock Level
- In Stock
- SKU
- P-07-A1-SE1
Description
Each unit is supplied with clear fitting instructions and A4 stainless steel fixings. The tapered seal ensures that the hole closes completely, creating a watertight seal around the cable.
Ideal for electrical cabling applications and ducting through bulkheads, decks, and panels – i.e. VHF, Satnav, GPS and Radar installations.
07-A1-SE1:
Material - Glass Filled Nylon
Size (LxWxH) - 55 x 42 x 16mm
Min/Max Cable Diameter - 2-7mm
Seal Material - Silicone
Seal Hole Size - 2.5mm,4mm & 6mm
Fixings - A4 Stainless Steel
Base Gasket - Foamed Neoprene (closed cell)

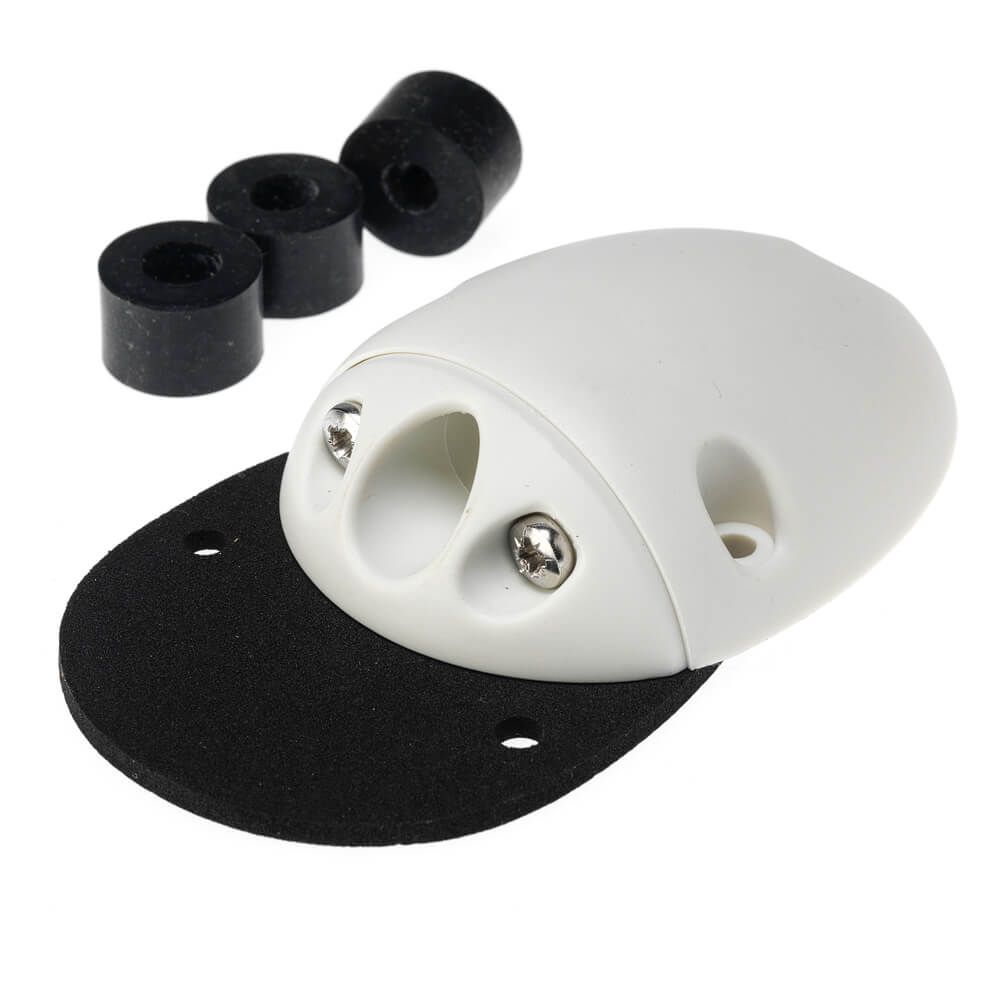

07-A1-SE5:
Material - Glass filled Nylon
Size (LxWxH) - 82 x 62 x 24mm
Min/Max Cable Diameter - 7-9mm
Seal Material - Silicone
Seal Hole Size - 2.5mm, 4mm & 6mm
Fixings - A4 Stainless Steel
Base Gasket - Foamed neoprene (closed cell)

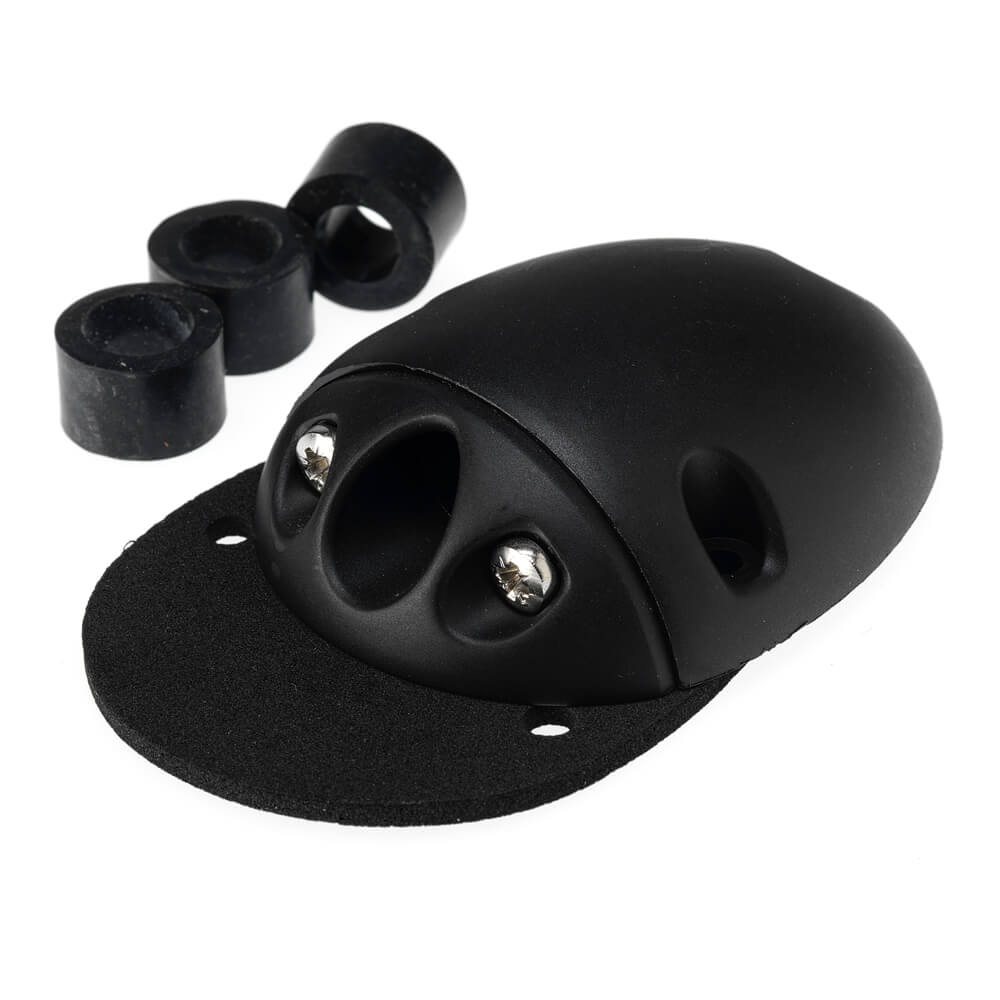

07-A1-SE6:
Material - Glass filled Nylon
Size (LxWxH) - 82 x 62 x 24 mm
Min/Max Cable Diameter - 10-12mm
Seal Material - Silicone
Seal Hole Size - 10mm, 11mm & 12mm
Fixings - A4 Stainless Steel
Base Gasket - Foamed neoprene (closed cell)
07-A1-SE7 - Twin Seal (Two Cable)
Material - Glass filled Nylon
Size (LxWxH) - 82 x 62 x 24mm
Cable Range - 2 x 3.5mm or 2 x 5.5mm
Seal Material - Silicone
Fixings - A4 Stainless Steel
Base Gasket - Foamed neoprene (closed cell)
Additional
| Options | SE1 Cable Gland - Black Plastic, SE1 Cable Gland - Grey Plastic, SE1 Cable Gland - White Plastic, SE5 Cable Gland - Black Plastic, SE5 Cable Gland - Grey Plastic, SE5 Cable Gland - White Plastic, SE6 Cable Gland - Black Plastic, SE6 Cable Gland - Grey Plastic, SE6 Cable Gland - White Plastic, SE7 Cable Gland - Black Plastic, SE7 Cable Gland - Grey Plastic, SE7 Cable Gland - White Plastic |
|---|---|
| Brand | Index |
